Control alpha on geom_rect with facet_wrap

March 14, 2023

I am trying to get partially transparent rectangles on a faceted plot. The following illustrates what I’m trying to do, except that the alpha argument isn’t working:

library(dplyr)
library(ggplot2)

df <- iris %>%
  filter(Species == "setosa" | Species == "versicolor") %>%
  group_by(Species) %>%
  mutate(plq = cut(Petal.Length,
                   quantile(Petal.Length,
                            probs = seq(0, 1, 0.5)),
                   labels = seq(1:(length(seq(0, 1, 0.5)) - 1)),
                   include.lowest = TRUE)) %>%
  ungroup() %>%
  group_by(Species, plq) %>%
  mutate(max = max(Petal.Length),
         min = min(Petal.Length)) %>%
  ungroup() %>%
  mutate(min = if_else(plq == 2,
                       min, NA),
         max = if_else(plq == 2,
                       max, NA))

df %>%
  ggplot(aes(x = Petal.Length)) +
  stat_density(geom = "line", position = "identity", adjust = 3) +
  geom_rect(aes(xmin = min, xmax = max, ymin = -Inf, ymax = Inf), alpha = 0.2) +
  facet_wrap(vars(Species)) +
  theme_classic()

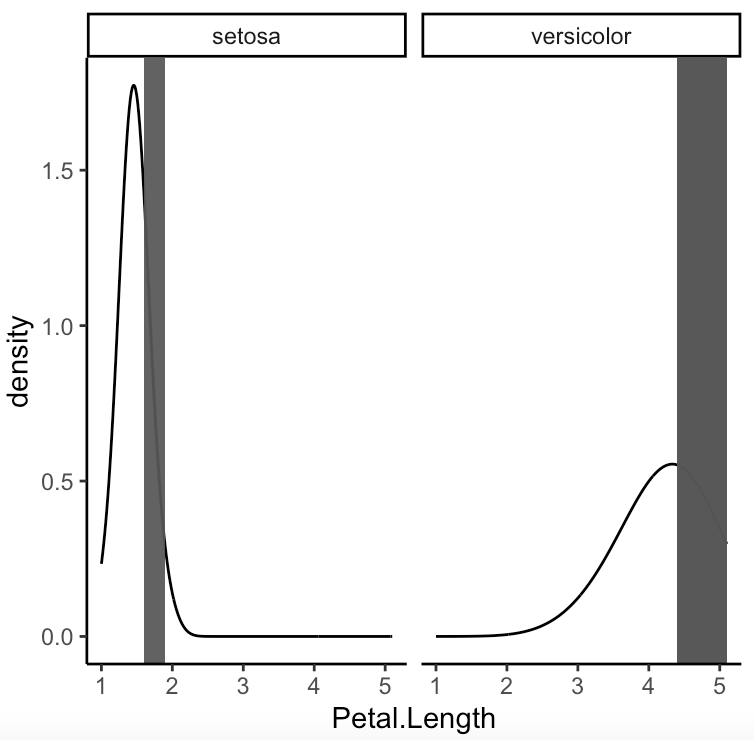

The plot is exactly what I want, except that the alpha argument isn’t working. I’ve found several other relevant Q&A’s (here and here), but I don’t think either one applies directly to my question.

>Solution :

library(dplyr)
df_rect <- df %>%
  filter(!is.na(max)) %>%
  distinct(Species, max, min)

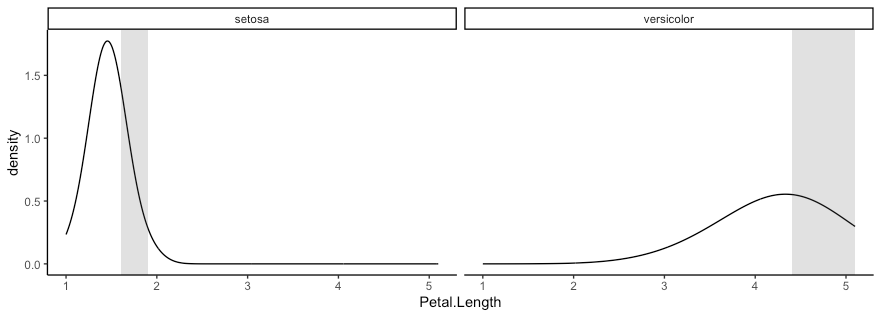

df %>%
  ggplot(aes(x = Petal.Length)) +
  stat_density(geom = "line", position = "identity", adjust = 3) +
  geom_rect(aes(xmin = min, xmax = max, ymin = -Inf, ymax = Inf),
            inherit.aes = FALSE, # or put Petal.Length only in the stat_density layer
            data = df_rect, alpha = 0.2) +
  facet_wrap(vars(Species)) +
  theme_classic()
