apply different formatting to only one bar label in matplotlib's bar label

I want to apply different formatting to only 1 bar label in matplotlib’s bar labels.

Example Code

import pandas as pd
import seaborn as sns
sns.set_style('white')

s = pd.Series({'John': 10000, 'Amy': 5000, 'Elizabeth': 2000, 'James': 3000, 'Roy': 4000})
color1 = ['orange', 'lightgrey', 'lightgrey','lightgrey','lightgrey']

ax1 = s.plot(kind='barh', color=color1, figsize=(6, 3), width=.8)

labels = ax1.bar_label(ax1.containers[0], padding=-10, color='black', fontsize=10)
for label in labels:
    label.set_ha('right')

ax1.set_xticks([])
sns.despine(bottom=True, left=True)

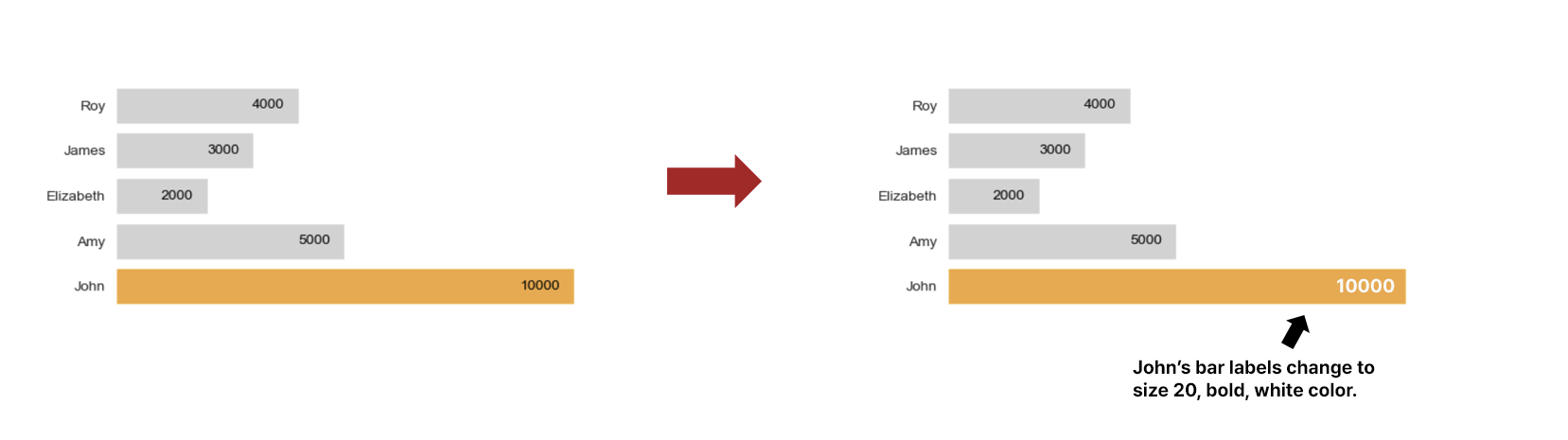

enter image description here

MEDevel.com: Open-source for Healthcare and Education

Collecting and validating open-source software for healthcare, education, enterprise, development, medical imaging, medical records, and digital pathology.

Visit Medevel

I want change John’s bar label to size 20, bold, white color.

also want to utilize s.index to target John.

Which code should I use?

Thank you for all your help!

>Solution :

You could change your loop to detect the value to change:

labels = ax1.bar_label(ax1.containers[0], padding=-10, color='black', fontsize=10)
for label in labels:
    label.set_ha('right')
    if label.get_text() == '10000':
        label.set_color('w')
        label.set_fontweight('bold')
        label.set_fontsize(20)

Or by position/label:

i = s.index.get_loc('John') # 0
labels[i].set_color('w')
labels[i].set_fontweight('bold')
labels[i].set_fontsize(20)

Output:

enter image description here

Add a comment
