I am using the library ggrepel to avoid label overlapp.
With the code below I got not overlapping labels but they are all at the rigth.
I would like to control the x position, that is why I used x = ColB in aes()) but it does not work as I expected.
What is wrong in my code and how could I obtain what I expect ?

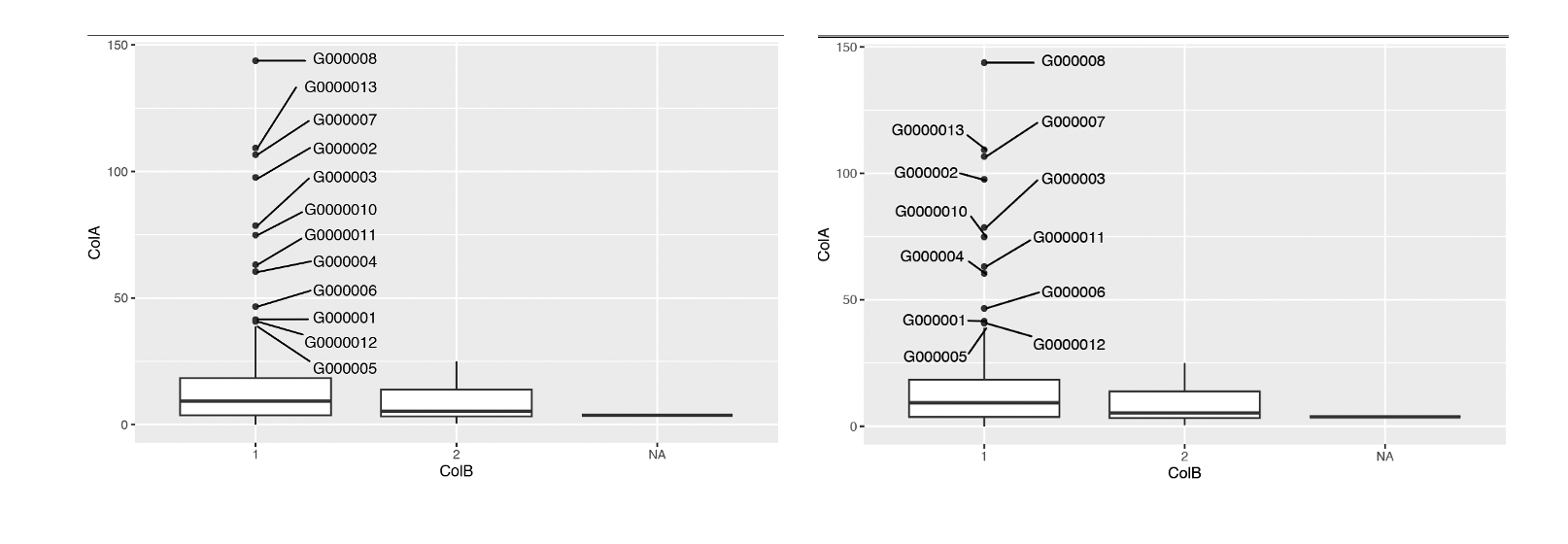

Please see at the end, example of image I would prefere to obtained.
library(ggplot2)
library(ggrepel)
data_test = data.frame(ColA = c(1, 41.5, 0.35, 8.7, 3.25, 14.25, 2.35,
10.8, 7.3, 22.6, 0.2, 14.2, 34.75, 13.8, 14.15, 2.5, 28.85, 35.5,
7.35, 3.1, 9.15, 7.7, 12.7, 3.75, 5.5, 9.55, 8.5, 25, 8.1, 97.65,
18.7, 5.6, 13.8, 0.7, 31.35, 15.55, 6.2, 10.45, 32.75, 24.8,
18.4, 78.6, 5.25, 30.9, 18.2, 4.6, 2.45, 2.8, 3.75, 15.9, 1,
13.5, 13.45, 20.2, 9.75, 13.5, 1.5, 3.6, 1, 23.6, 0.45, 5.7,
60.45, 0.3, 0.3, 17.25, 2.1, 12, 3.6, 29.65, 3.7, 1.25, 38.8,
9, 1.1, 4.1, 11.1, 1.5, 2.8, 13.75, 4, 1.25, 0, 46.6, 5.25, 106.65,
9.3, 35, 9.85, 7.5, 3.6, 0.3, 20.35, 31.7, 24.75, 3, 9.3, 15.3,
3, 6.5, 12, 7.75, 143.75, 7, 11.1, 22.9, 0.1, 1.35, 5.75, 1.1,
6.75, 9.5, 4.25, 5.35, 9.75, 35.4, 1, 8.5, 1.5, 1, 6, 0, 63.15,
17.6, 12.25, 7.2, 6.5, 15.95, 11.35, 8.25, 2.5, 24.95, 109.3,
4.35, 28.05, 14.65, 18.55, 74.85, 4.25, 31.15, 10, 11, 17.6,
8.1, 19.1, 2.35, 4.75, 24.95, 40.75, 1, 9.15, 38, 13.5, 2.1,
2, 13.5, 0.5, 3.5, 27, 7.2, 17.1, 1.6, 0.5, 6.35, 15, 17.2, 4.5,
10.6),
ColB = c("1", "1", "1", "1", "2", "1", "1",
"1", "1", "1", "1", "1", "1", "1", "1", "2", "1", "1", "1", "1",
"1", "1", "2", "1", "1", "1", "1", "1", "1", "1", "1", "1", "2",
"1", "1", "1", "1", "1", "1", "2", "1", "1", "2", "1", "1", "2",
"1", "2", "1", "1", "1", "1", "1", "1", "1", "1", "1", "2", "1",
"1", "2", "1", "1", "1", "1", "1", "1", "1", "1", "1", NA, "1",
"1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1",
"1", "1", "1", "1", "1", "2", "1", "1", "1", "1", "1", "1", "1",
"1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "2", "2",
"1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "2",
"1", "1", "1", "1", "1", "1", "1", "2", "1", "1", "1", "2", "1",
"1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1",
"1", "1", "1", "1", "1", "1", "1", "1", "1", "2", "1", "1", "1",
"1", "1", "1", "1", "1"),
outlier=c(NA, "G000001", NA, NA, NA,
NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,
NA, NA, NA, NA, NA, NA, NA, NA, "G000002", NA, NA, NA, NA, NA, NA,
NA, NA, NA, NA, NA, "G000003", NA, NA, NA, NA, NA, NA, NA, NA,
NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, "G000004", NA,
NA, NA, NA, NA, NA, NA, NA, NA, "G000005", NA, NA, NA, NA, NA,
NA, NA, NA, NA, NA, "G000006", NA, "G000007", NA, NA, NA, NA, NA,
NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, "G000008", NA, NA,
NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,
NA, "G0000011", NA, NA, NA, NA, NA, NA, NA, NA, NA, "G0000013", NA,
NA, NA, NA, "G0000010", NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,
"G0000012", NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,
NA, NA, NA, NA, NA, NA))
> data_test
ColA ColB outlier
1 1.00 1 <NA>
2 41.50 1 G000001
3 0.35 1 <NA>
4 8.70 1 <NA>
5 3.25 2 <NA>
6 14.25 1 <NA>
7 2.35 1 <NA>
8 10.80 1 <NA>
9 7.30 1 <NA>
10 22.60 1 <NA>
11 0.20 1 <NA>
12 14.20 1 <NA>
13 34.75 1 <NA>
14 13.80 1 <NA>
15 14.15 1 <NA>
ggplot(data_test, aes(x=ColB, y=ColA)) +
geom_boxplot() +
geom_text_repel(aes(label=outlier, x=ColB), na.rm=TRUE, show.legend = F)
>Solution :
This behavior looks like a bug to me and results from the missing value in ColB, i.e. the NA category. A fix would be to replace the missing value with an "NA" string. Additionally I restricted the repelling to the y direction and used nudge_x to shift the labels:
library(ggplot2)
library(ggrepel)
data_test |>
transform(
ColB = ifelse(is.na(ColB), "NA", ColB)
) |>
ggplot(aes(x = ColB, y = ColA)) +
geom_boxplot() +
geom_text_repel(
aes(label = outlier),
na.rm = TRUE,
show.legend = FALSE,
direction = "y",
nudge_x = .4
)
