Gnuplot – bar plot with bar labels rotated 90 degrees clockwise

I have this Gnuplot script:

reset session

$Data <<EOD
"Push-Front"            2344 0x289e37
"Push-Back"             187  0x289e37
"Insert"                1222 0x289e37
"Push-Front-Collection" 519  0x289e37
"Push-Back-Collection"  420  0x289e37
"Insert-Collection"     287  0x289e37
"Search"                191  0x28579e
"Pop-Front"             4939 0xa83232
"Pop-Back"              251  0xa83232
"Delete"                4771 0xa83232
"Delete-Range"          345  0xa83232
EOD

set style line 11 lc rgb 0xeeeeee lt 1 lw 1
set style fill solid 1.0
set boxwidth 0.8
set key noautotitle
set ytics 1000
set grid y ls 11
set tics scale 0
set tics out
set xtics rotate by -45
set terminal svg size 450,300 enhanced font "Times New Roman,12"
set output '..\msc-sandbox\TotalDurationBarPlotArrayList.svg'
set yrange[0:5000]
set ylabel "Milliseconds"
plot $Data u 0:2:3:xtic(1) w boxes lc rgb var#, \
        '' u 1:2:3 w labels offset 0,0.7

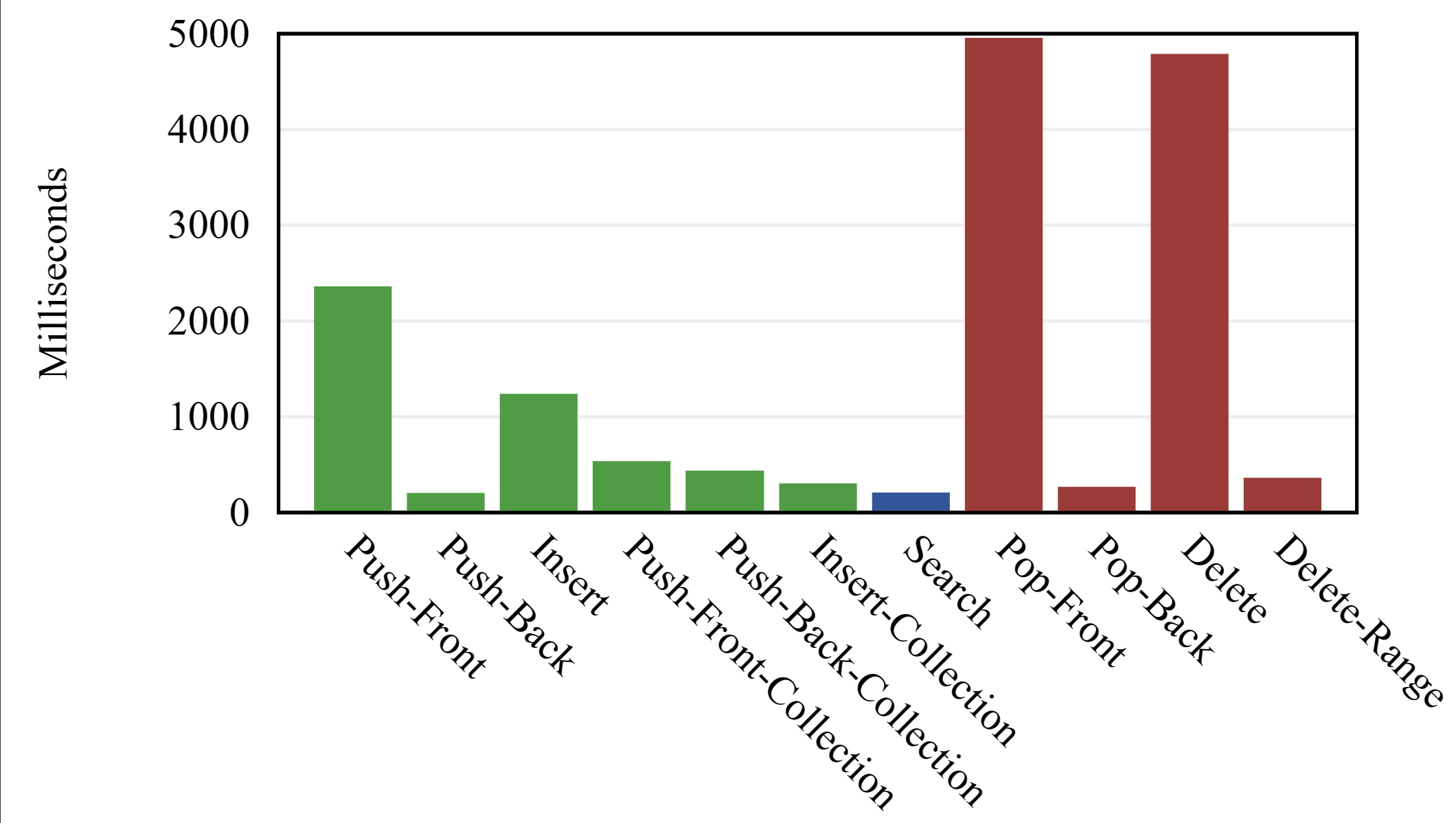

It looks like this:

What I want to achieve, is to add bar height values on top of each bar, rotated clockwise by 90 degrees in order for the labels fit in the plot.

>Solution :

You don’t get your values on top

1. because you end your line with w boxes lc rgb var#, \ where #, \ comments out the following line
2. the plot command for the values should read u 0:2:2

• You could also rotate your xticlabels by +45 or labels for the values by -90 degrees and align it right or left. That’s just a matter of personal reading preference.
• add some offset/margin at the top to get the numbers above the value within the graph area.

Script:

### bar chart with rotated xticlabels and values on top
reset session

$Data <<EOD
"Push-Front"            2344 0x289e37
"Push-Back"             187  0x289e37
"Insert"                1222 0x289e37
"Push-Front-Collection" 519  0x289e37
"Push-Back-Collection"  420  0x289e37
"Insert-Collection"     287  0x289e37
"Search"                191  0x28579e
"Pop-Front"             4939 0xa83232
"Pop-Back"              251  0xa83232
"Delete"                4771 0xa83232
"Delete-Range"          345  0xa83232
EOD

set style line 11 lc rgb 0xeeeeee lt 1 lw 1
set style fill solid 1.0
set boxwidth 0.8
set key noautotitle
set ytics 1000
set grid y ls 11
set tics out
set xtics rotate by 45 right
set yrange[0:]
set ylabel "Milliseconds"
set offset 0,0, graph 0.1, 0

plot $Data u 0:2:3:xtic(1) w boxes lc rgb var, \
        '' u 0:2:2 w labels offset 0,0.5 rotate by 90 left
### end of script

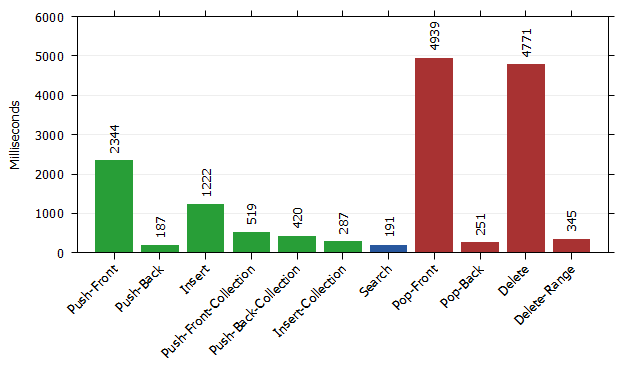

Result:
