I am currently working on this code (this is a shortened version):
\documentclass{scrartcl}
\usepackage[utf8]{inputenc}
\usepackage{tikz}
\usetikzlibrary{calc}
\begin{document}
% Syntax:
% \DoublLine[half of the double line distance]{first node}{second node}{options line 1}{options line 2}
\newcommand\DoubleLine[5][4pt]{%
\path(#2)--(#3)coordinate[at start](h1)coordinate[at end](h2);
\draw[#4]($(h1)!#1!90:(h2)$)--($(h2)!#1!-90:(h1)$);
% node [midway, above=1pt, fill=none] {3};
\draw[#5]($(h1)!#1!-90:(h2)$)--($(h2)!#1!90:(h1)$);
% node [midway, below=1pt, fill=none] {3};
}
\begin{figure}[h]
\begin{tikzpicture}[myn/.style={very thick,draw,inner sep=0.25cm,outer sep=3pt}]
\scalebox{0.5}{
\centering
% place nodes
\node[myn] (a) at (2,5) {Node 6};
\node[myn] (b) at (4, 8) {Node 12};
\node[myn] (c) at (5, 5) {Node 19};
\node[myn] (d) at (5, 3) {Node 20};
\node[myn] (e) at (7.5,5) {Node 18};
\node[myn] (f) at (7.5,10) {Node 10};
\node[myn] (g) at (10,3) {Node 4};
\node[myn] (h) at (10,5) {Node 2};
\node[myn] (i) at (10,8) {Node 13};
\node[myn] (j) at (10,10) {Node 14};
\node[myn] (k) at (13,5) {Node 21};
\node[myn] (l) at (12,7) {Node 1};
\node[myn] (m) at (12,10) {Node 16};
\node[myn] (n) at (15.5,5) {Node 3};
\node[myn] (o) at (13,12) {Node 8};
\node[myn] (p) at (16,3) {Node 5};
\node[myn] (q) at (16,7) {Node 9};
\node[myn] (r) at (7.5,3) {Node 11};
\node[myn] (s) at (11,1){Node 7};
\node[myn] (t) at (12,-1){Node 17};
\node[myn] (u) at (13,-3){Node 22};
\node[myn] (v) at (7.5,-1){Node 15};
%Single line orange
\draw[edge][color=orange, very thick] (i)--(j);
%Single line orange
\draw[edge][color=orange, very thick] (n)--(q);
\draw[edge][color=orange, very thick] (h)--(d);
%double line orange
\DoubleLine{o}{m}{-,very thick,cyan}{-,very thick,orange};
\DoubleLine{i}{m}{-,very thick,cyan}{-,very thick,orange};
}
\end{tikzpicture}
\caption{Line plan: Model A on Set RL}
\label{fig:Line plan Model A on Set RL}
\end{figure}
\end{document}
The figure is shown in the middle of the page and not even centered. As I am quite a beginner in latex, I am wondering how this could work? I need the figure to be on top of the page and centered.
I tried [h] and [t] and also \vspace*{3in}, but it does not work.
>Solution :
A couple of problems:
-
your figure is too large, it includes tons of white space caused by some of the problem mentioned in the points below. You can see a warning about the overfull box in the log file. Thus it can’t be placed according to your
[t]floating specifier -
using
\centeringand\scaleboxinside the tikz picture makes no sense. If you want the picture to be centred, use it before the tikzpicture -
don’t use
\scaleboxfor elements which contain text. -
tikz has it’s own commands to scale things
-
if you want a figure to be at the top of the page, the page actually needs some text on it
and finally:
- The code does NOT run if it throws an error message! Latex only syntax checks the rest of the document, not necessarily producing sensible output. Never ignore error messages.
\documentclass{scrartcl}
\usepackage[utf8]{inputenc}
\usepackage{tikz}
\usetikzlibrary{calc}
\begin{document}
% Syntax:
% \DoublLine[half of the double line distance]{first node}{second node}{options line 1}{options line 2}
\newcommand\DoubleLine[5][4pt]{%
\path(#2)--(#3)coordinate[at start](h1)coordinate[at end](h2);
\draw[#4]($(h1)!#1!90:(h2)$)--($(h2)!#1!-90:(h1)$);
% node [midway, above=1pt, fill=none] {3};
\draw[#5]($(h1)!#1!-90:(h2)$)--($(h2)!#1!90:(h1)$);
% node [midway, below=1pt, fill=none] {3};
}

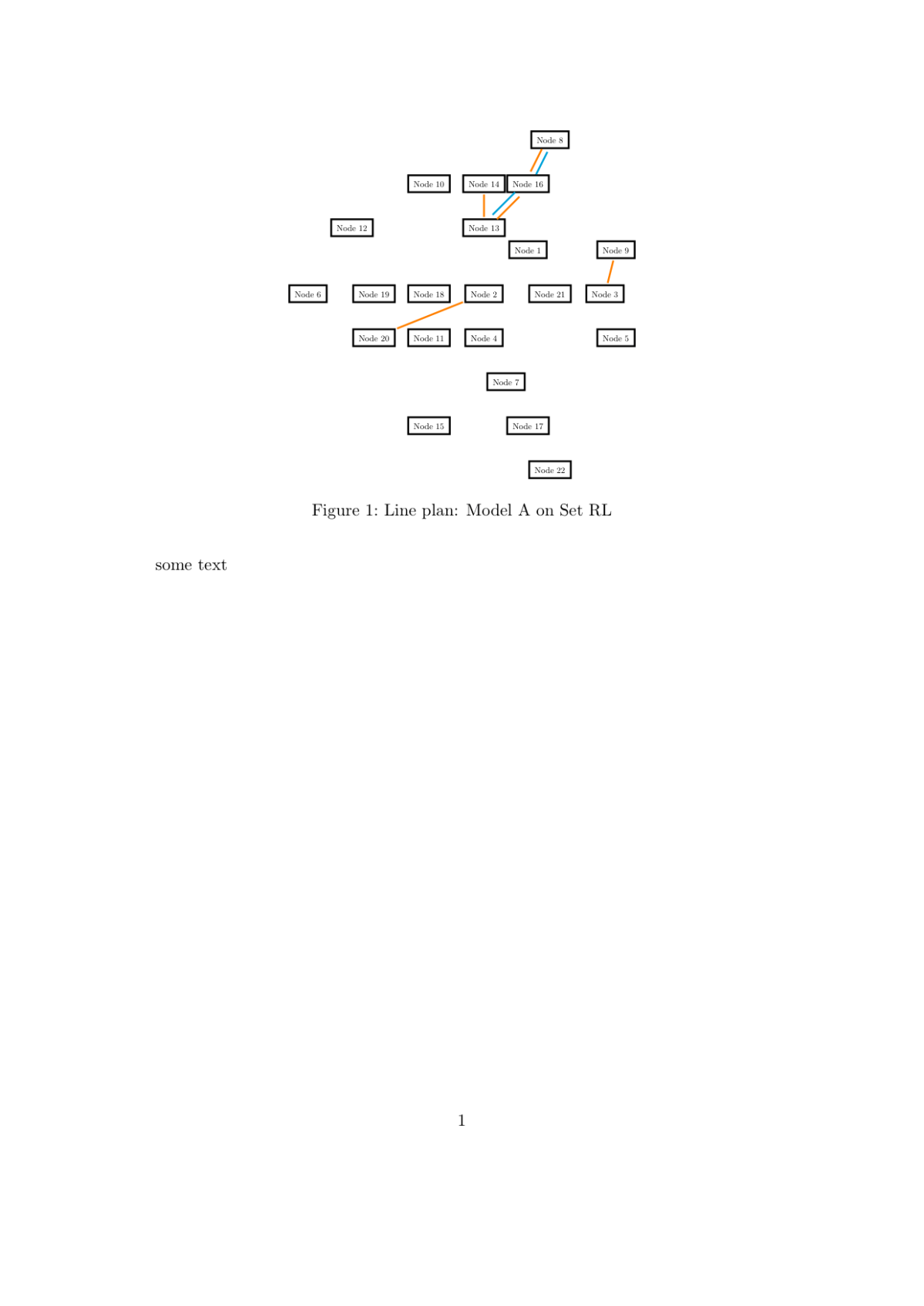

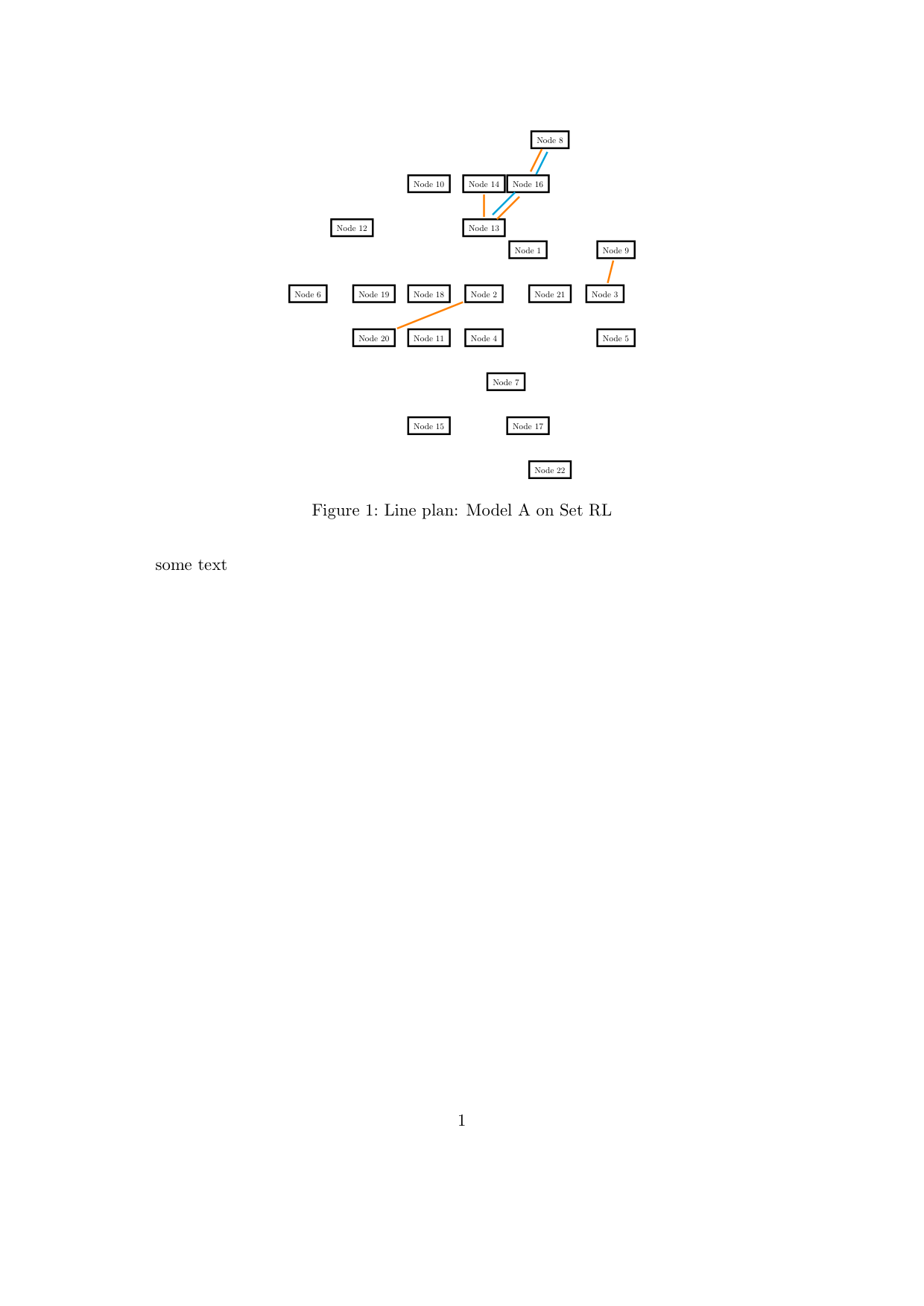

some text
