How to project a contour map on the xy plane using matplotlib?

July 24, 2024

How can I plot a contour map on the xy plane rather than on the 3d surface of the function?

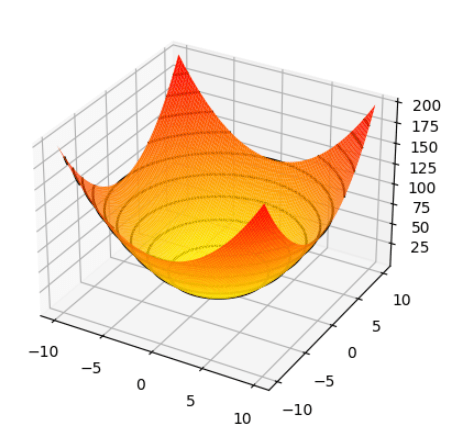

This is my current output:

import numpy as np
import matplotlib.pyplot as plt

def f(x,y):
    return x**2 + y**2

x = np.linspace(-10,10,100)
y = np.linspace(-10,10,100)
X,Y = np.meshgrid(x,y) # array of values containing all value pairs (xi, yi)
Z = f(X,Y)

fig = plt.figure()
ax = plt.axes(projection='3d')
ax.plot_surface(X, Y, Z, cmap="autumn_r", rstride=1, cstride=1)
ax.contour(X, Y, Z, 10, cmap="autumn_r", linestyles="solid")
plt.show()

>Solution :

If you want the contour to be on one of the planes then set the offset. offset=0 puts the contour on the Z=0 plane (since the default zdir is z).

fig, ax = plt.subplots(subplot_kw={"projection":"3d"})
ax.plot_surface(X, Y, Z, cmap="autumn_r", rstride=1, cstride=1)
ax.contour(X, Y, Z, 10, offset=0, cmap="autumn_r", linestyles="solid")
plt.show()
