This is a general question..
How does the math behind the first set of input work (0,0), since the inputs get inverted (0,0) becomes (1,1) which if we then add becomes a 2 (‘0b10’) how is the output ‘1’.
>Solution :
OR is not the same as integer addition. The truth table for an OR gate is
A B A OR B
0 0 0
0 1 1
1 0 1
1 1 1
The output is 1 if and only if A is 1 or B is 1 (hence the name).
The truth table shown is not for a NOR gate, but rather a NAND gate. One of De Morgan’s laws states that
NOT A OR NOT B == NOT (A AND B)
and you can see this is the case:
A B A OR B A AND B NOT (A AND B)
0 0 0 0 1
0 1 1 0 1
1 0 1 0 1
1 1 1 1 0

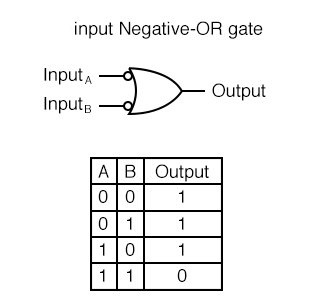

If I see "Negative-OR", I assume they mean NOR. Whoever created that image may have intended it to be read "input-negative OR", which matches the symbol and the truth table, but isn’t a term I’ve ever heard before.
